When surge arresters fail unexpectedly, the consequences extend far beyond equipment replacement. Ground faults cascade into widespread blackouts, affecting thousands of customers and costing utilities millions in lost revenue and emergency response. Our RCA series transforms surge arrester maintenance from reactive crisis management into proactive asset protection.
Surge arresters silently protect your electrical infrastructure every day, but their deterioration often goes unnoticed until catastrophic failure occurs. Traditional maintenance approaches miss the early warning signs that could prevent disasters. While total leakage current measurements provide basic health indicators, they lack the sensitivity to detect the resistive current increases that signal imminent failure.

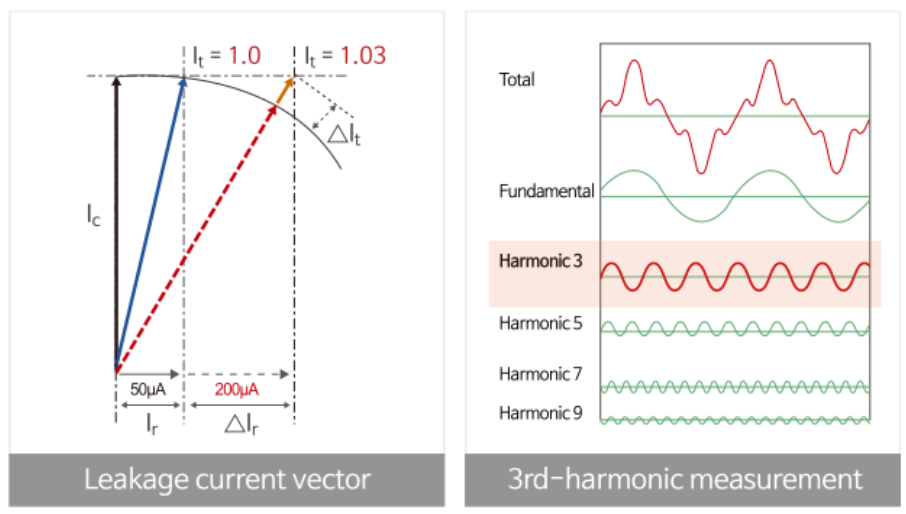

The challenge lies in measurement precision. Resistive current – the true indicator of arrester deterioration – represents only 10-20% of total leakage current, typically ranging from just 10 to 600 microamperes. This tiny signal holds the key to preventing major grid failures, but conventional diagnostic methods struggle to isolate and accurately measure it.
Our RCA series employs breakthrough phase detection technology that measures resistive current without requiring voltage reference inputs. By expanding total leakage current into Fourier series at voltage zero points, the system isolates sine components that represent true resistive current with exceptional accuracy.
This innovation overcomes the field application challenges that have limited other diagnostic approaches, delivering laboratory-grade precision in portable, field-ready instruments.

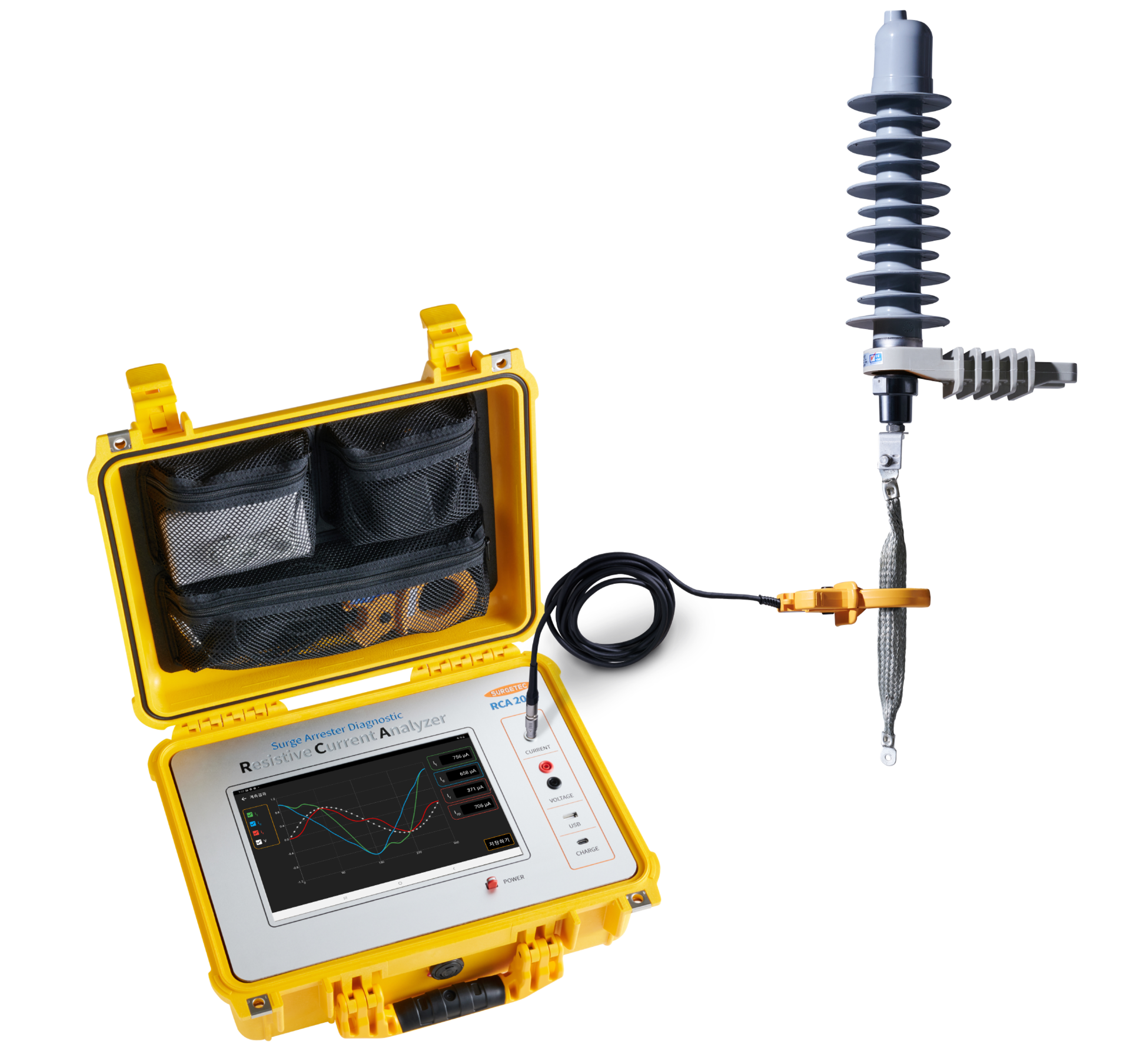

The flagship model combines comprehensive analysis capabilities with optional voltage input for the most demanding diagnostic applications. Features high-resolution Super AMOLED display, octa-core processing power, and complete connectivity options including USB 3.1, Bluetooth 5.0, and Wi-Fi for seamless data integration.
IP67 environmental protection ensures reliable operation in harsh field conditions.

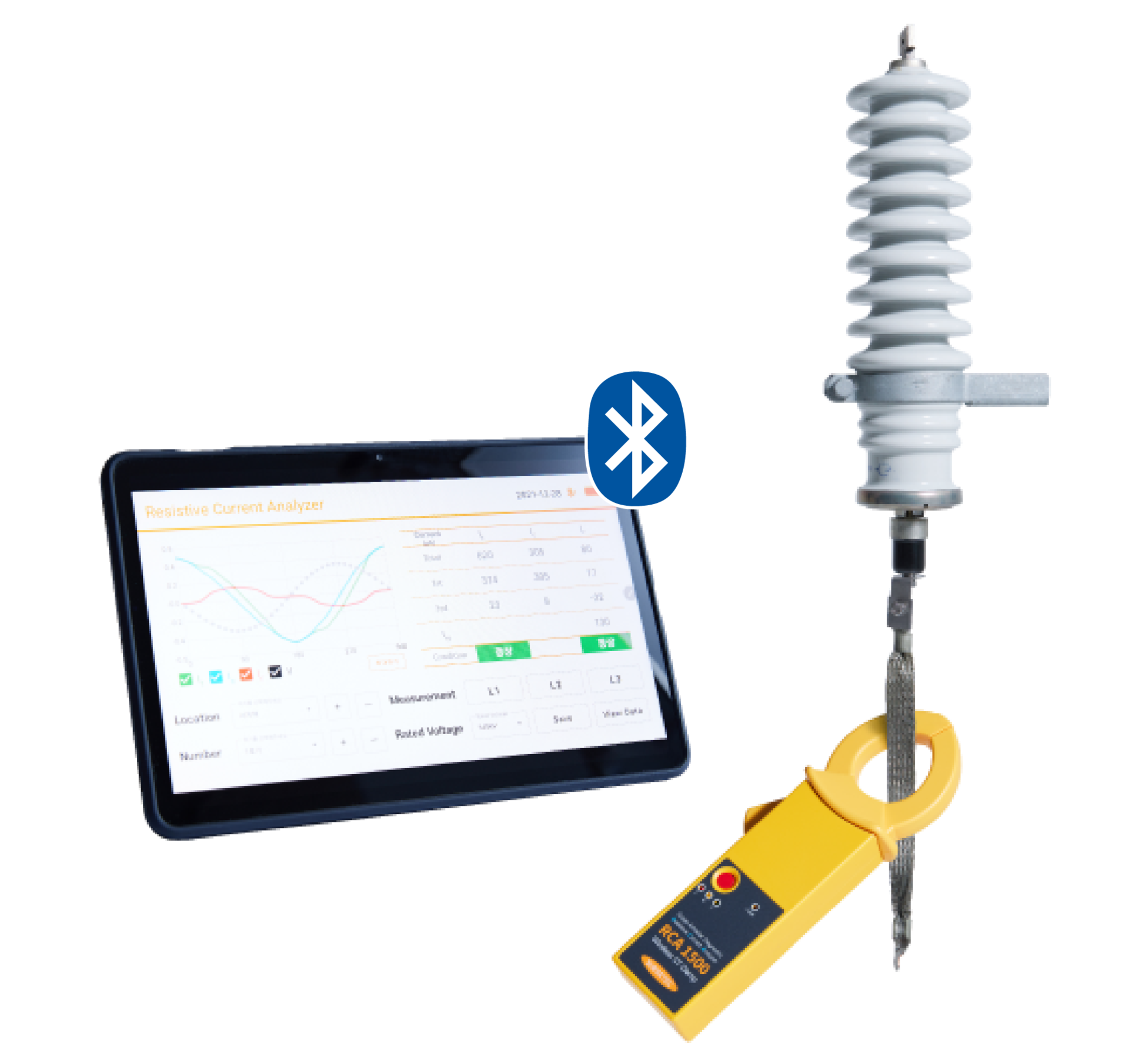

Optimized for routine maintenance operations, the RCA1500 delivers full resistive current analysis with wireless connectivity and professional-grade ruggedness.
Combines the same Super AMOLED display and processing power as the RCA2000 in a streamlined package, perfect for utility field teams requiring portability without sacrificing analytical capability.
Measurement Range: 0.05mA to 10mA total leakage current
Accuracy: ±1% for total current, ±5% for resistive current
Harmonic Analysis: Fundamental through 9th harmonics
Environmental Rating: IP67 protection (RCA2000/1500)
Battery Life: Extended operation with 7040mAh capacity
The measurement challenge lies in precision – resistive current represents only 10-20% of total leakage current, typically ranging from just 10 to 600 microamperes. This tiny signal holds the key to preventing major grid failures, but conventional diagnostic methods struggle to isolate and accurately measure it.
Our phase detection system expands total leakage current into Fourier series at voltage zero points, isolating sine components that represent true resistive current with exceptional accuracy. This breakthrough overcomes the field application challenges that have limited other diagnostic approaches.

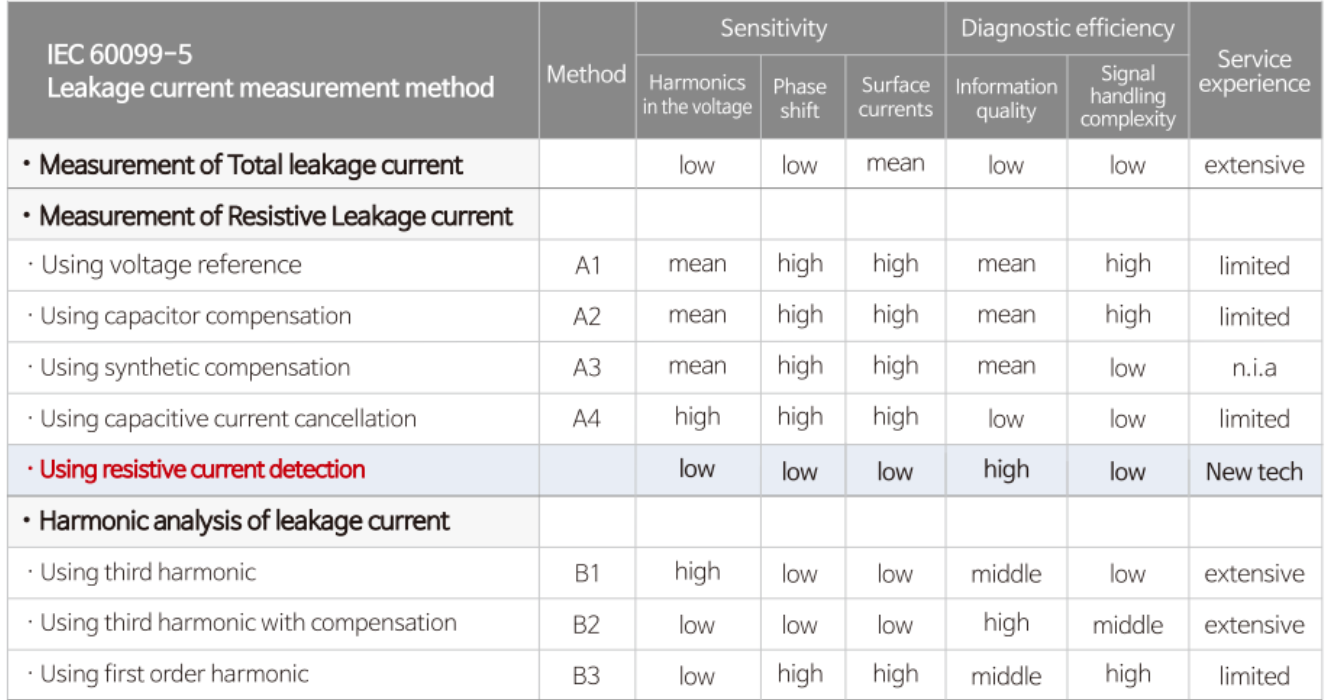

According to IEC 60099-5 standards, normal surge arrester operation produces resistive leakage current between 10µA and 600µA peak. When this current increases 3-4 times the initial value, deterioration has reached critical levels requiring immediate attention.
Our analyzers distinguish between:
This diagnostic precision enables condition-based maintenance strategies that extend asset life while preventing unexpected failures.
Developed by SURGETEC, a research institute company designated by Korea’s Ministry of Science and ICT, our RCA series represents years of specialized development in surge arrester diagnostics. Patent-registered technology in both Korea and the USA demonstrates our commitment to innovation and quality.
Trusted by utilities worldwide, our equipment transforms maintenance operations from scheduled interventions to intelligent asset management based on actual equipment condition.
Replace time-based maintenance schedules with precise condition diagnosis. Identify deterioration trends before they become failures. Protect your grid infrastructure with the diagnostic precision it deserves.
Contact us to discuss how the RCA series can improve your grid reliability while reducing maintenance costs!
